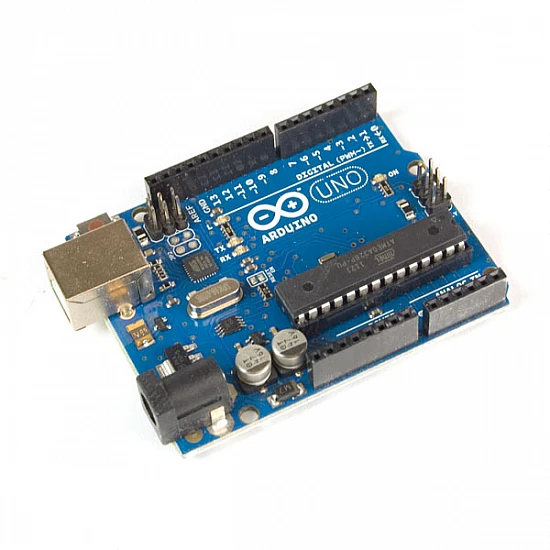

                        Arduino UNO R3 Compatible Development Board
                                                    - Stock: In Stock
- Brand: Import Dukan
- SKU: E-1402
₹385
                            7 or more ₹360
                                    30 or more ₹346
                                (Excluding 18% GST)
The Arduino Uno R3 Compatible Board is a microcontroller board which is based on the ATmega328. Arduino Uno has 14 digital input or output pins(where 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button. It has everything needed to support the microcontroller, you need to simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.
Features:
- Easy application programming using open source IDE
- Easy to learn Microcontroller using Arduino boards.
- Easy application programming using open source IDE
- Ready Library for most of the sensors and application modules.
- More information on www.arduino.cc
Specification:
| Microcontroller Chip | ATmega328 |
| Analog I/O Pins | 6 |
| Digital I/O Pins | 14 (of which 6 provide PWM output) |
| DC Current per I/O Pin | 40 mA |
| DC Current for 3.3V Pin | 50 mA |
| SRAM | 2 KB |
| EEPROM | 1 KB |
| Flash Memory | 32 KB of which 0.5 KB used by bootloader |
| Clock Speed | 16 MHz |
| Operating Voltage | 5V |
| Input Voltage | 7-12V |
| Input Voltage (limit) | 6-20V |
Package included:
1 x Arduino UNO R3 Compatible Development Board
| Technical | |
| Microcontroller | ATmega328 |
| Analog I/O Pins | 6 |
| Clock Speed | 16 MHz |
| Digital I/O Pins | 14 (of which 6 provide PWM output) |
| EEPROM | 1 KB |
| Flash Memory | 32 KB of which 0.5 KB used by bootloader |
| Input Voltage | 7-12V |
| Operating Voltage | 5V |
| SRAM | 2 KB |
