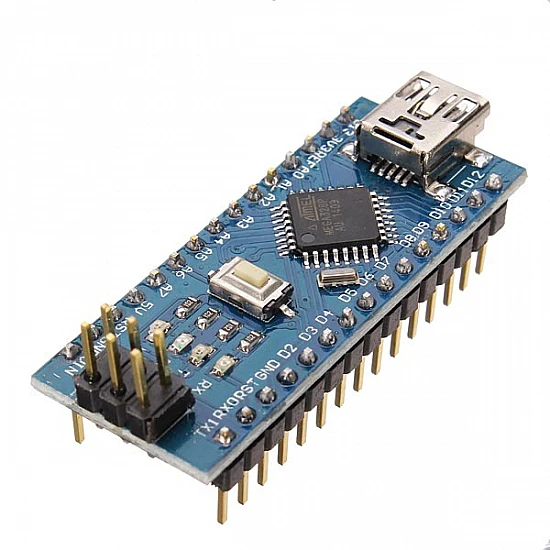

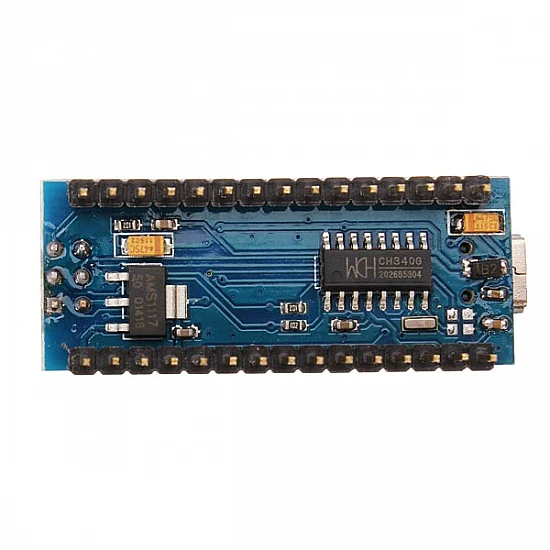

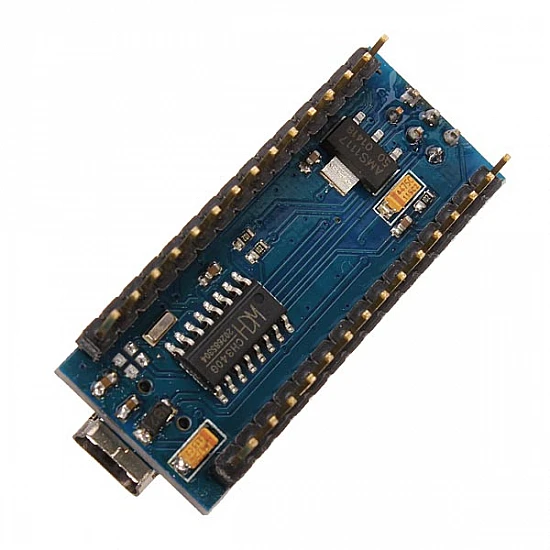

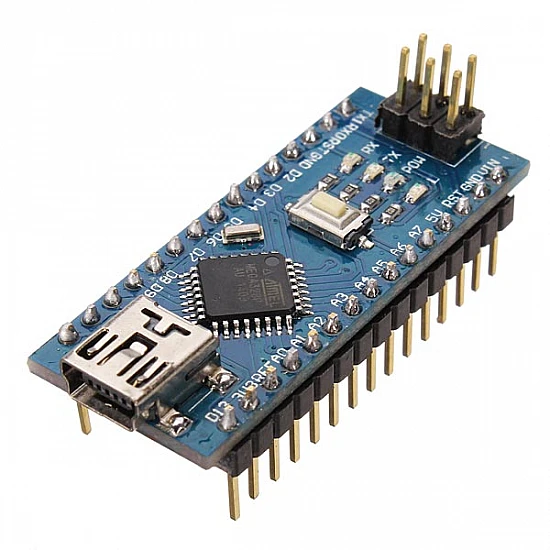

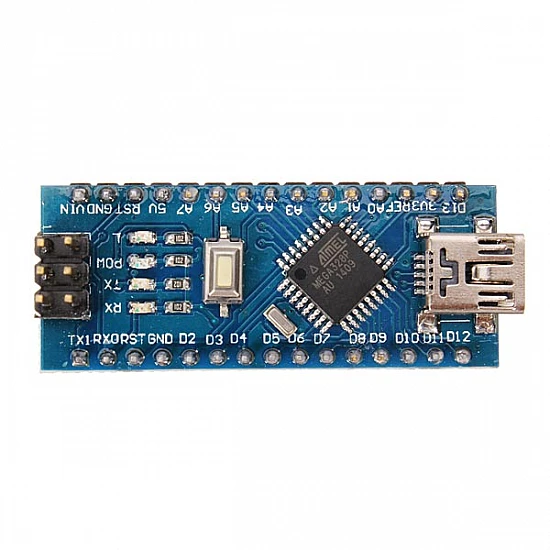

Arduino Nano R3 Compatible Board with CH340 chip SOLDERED

Arduino Nano R3 Board with CH340 chip SOLDERED - Arduino Board - Arduino
Arduino Nano R3 Board with CH340 chip SOLDERED - Arduino Board - Arduino
Arduino Nano R3 Board with CH340 chip SOLDERED - Arduino Board - Arduino
Arduino Nano R3 Board with CH340 chip SOLDERED - Arduino Board - Arduino
Arduino Nano R3 Board with CH340 chip SOLDERED - Arduino Board - Arduino
Arduino Nano R3 Board with CH340 chip SOLDERED - Arduino Board - Arduino
Arduino Nano R3 Board with CH340 chip SOLDERED - Arduino Board - Arduino
Arduino Nano R3 Board with CH340 chip SOLDERED - Arduino Board - Arduino
Arduino Nano R3 Board with CH340 chip SOLDERED - Arduino Board - Arduino
Arduino Nano R3 Board with CH340 chip SOLDERED - Arduino Board - Arduino
Arduino Nano R3 Compatible Board with CH340 chip SOLDERED
₹164
7 or more ₹157
30 or more ₹153

(Excluding 18% GST)

The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x) or ATmega168 (Arduino Nano 2.x). It has more or less the same functionality as the Arduino Duemilanove but in a different package. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.



Specification:

Microcontroller  ATmega328
Flash Memory 32 KB (ATmega328) of which 2 KB used by bootloader
SRAM 1 KB or 2KB
EEPROM

 512 bytes (ATmega168) or 1 KB (ATmega328)

Clock Speed 16 MHz
Digital I/O Pins 14 (of which 6 provide PWM output)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Operating Voltage 5V
Input Voltage 7 - 12 V (5V model)



Package included:

1 x Arduino nano R3 Compatible Board soldered

Technical
Microcontroller

ATmega168 or ATmega328

Analog I/O Pins

8

Clock Speed

16 MHz

Digital I/O Pins

14 (of which 6 provide PWM output)

EEPROM

512 bytes (ATmega168) or 1 KB (ATmega328)

Flash Memory

16 KB (ATmega168) or 32 KB (ATmega328) of which 2 KB used by bootloader

Input Voltage

7-12V

Operating Voltage

5V

SRAM

1 KB or 2KB
