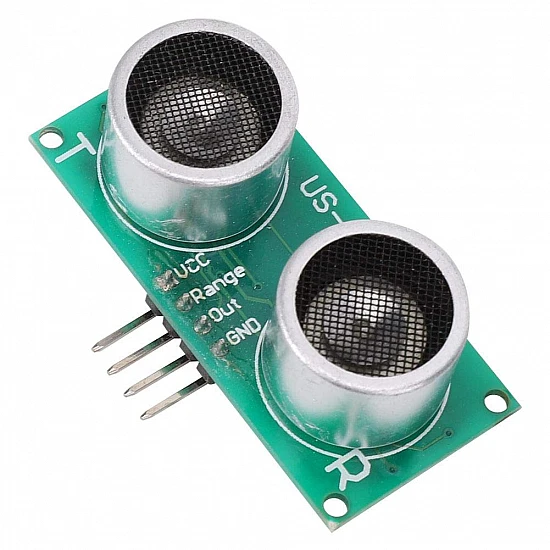

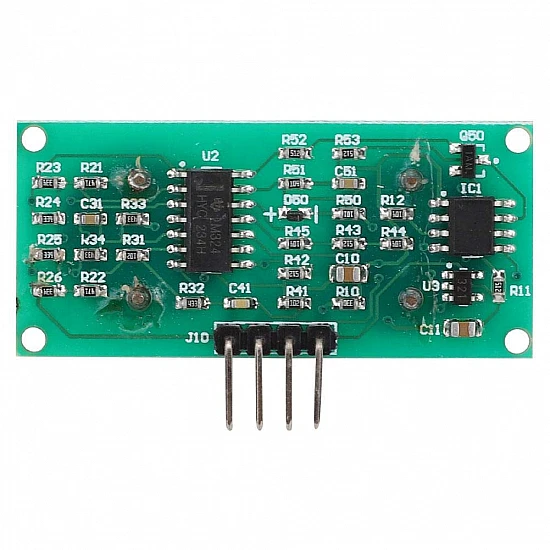

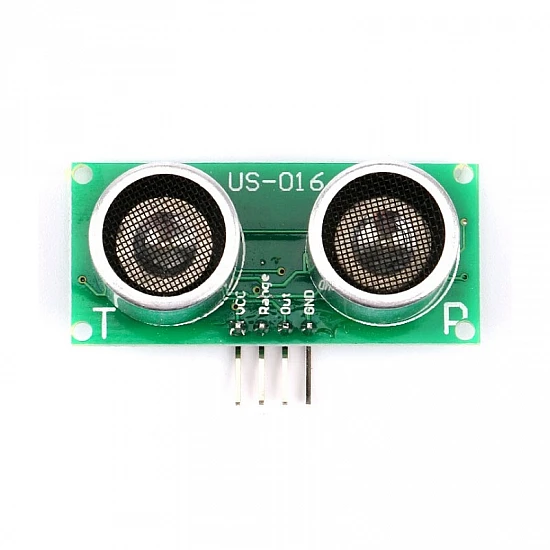

US-016 Dual Range Analog Ultrasonic Ranging Module | Sensors | Infrared/Distance

This is US-016 Dual Range Analog Ultrasonic Ranging Module from the category Sensors | Infrared/Distance.

1. Detailed

This module can be set to different ranges according to different scenarios (maximum measuring distance of 1m respectively and 3m); when the Range pin is floating, the range is 3m. The US-016 ultrasonic ranging module can achieve 2cm 3m non-contact distance measurement function, the power supply voltage of 5V, operating current of 3.8mA, support for analogue voltage output, stable, and reliable.

The output voltage of the US-016s distance-measuring capability is proportional to the distance measured.

2. The primary technical criteria

Ultrasonic ranging module US-016 electrical specifications

DC 5V is the operating voltage.

3.8 mA working current

Working temperature is between 0 and 70 degrees.

(0 to Vcc) for analogue output voltage

Less than 15 degrees is the induction angle.

Detection range: 2 cm to 300 cm

Accuracy of detection: 0.3 cm + 1%

1 mm resolution
