TLP281 4-Channel Optocoupler Isolation Module | Sensors | Common

This is TLP281 4-Channel Optocoupler Isolation Module from the category Sensors | Common.

Product High level use is controlled by low level.

For instance, using a single-chip microcomputer with a control voltage of 3V or 5V, 9V or 12V, and a maximum of 24V for the HVCC.

Maximum absorption current is 500mA, and outlet OUT1/OUT2/OUT3/OUT4 output current is equivalent to the greatest HVCC/5.1K.

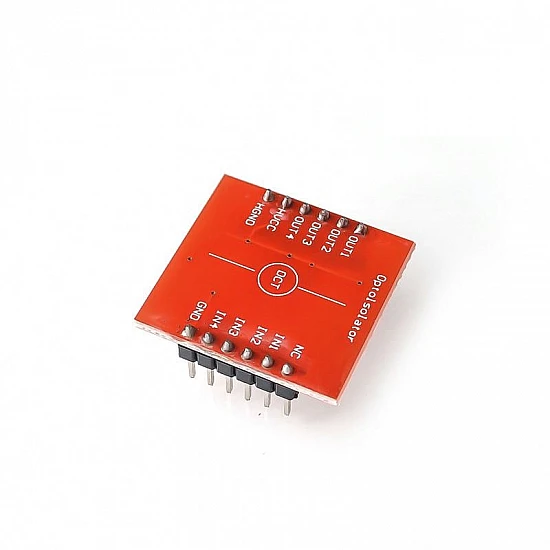

IN1, IN2, IN3, IN4, SCM are the inputs. or for the GND connector on the Ard uino board, the single-chip microprocessor, or the IO port.

The OUT1 / OUT2 / OUT3 / OUT4 are controlled by IN1, IN2, IN3, and IN4, accordingly.

OUT1/OUT2/OUT3/OUT4 are the outputs.

Output: HGND connection controls the high voltage anode, whereas HVCC controls the connection to the high voltage anode.

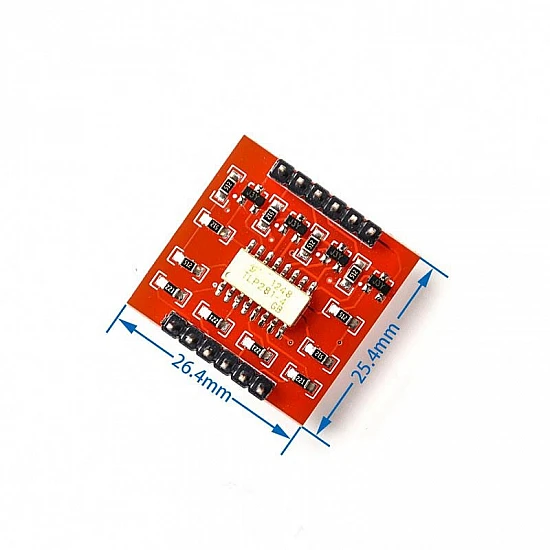

PCB Dimensions: 25x24mm/0.98x0.94

One 4-channel optocoupler isolation module is included in the package.
