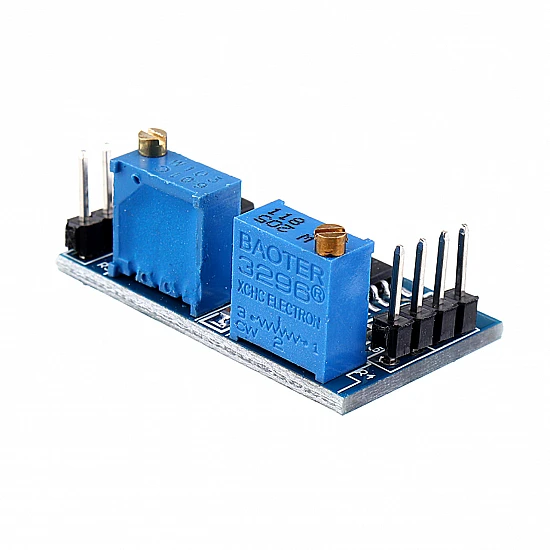

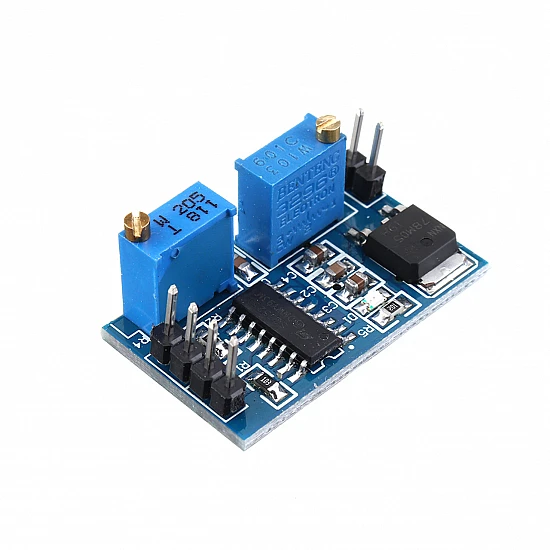

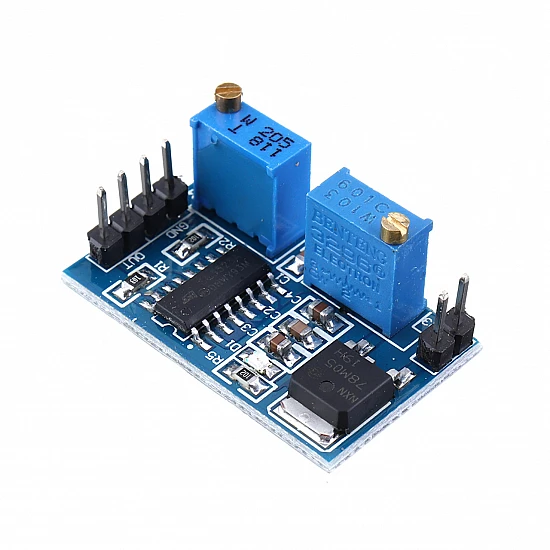

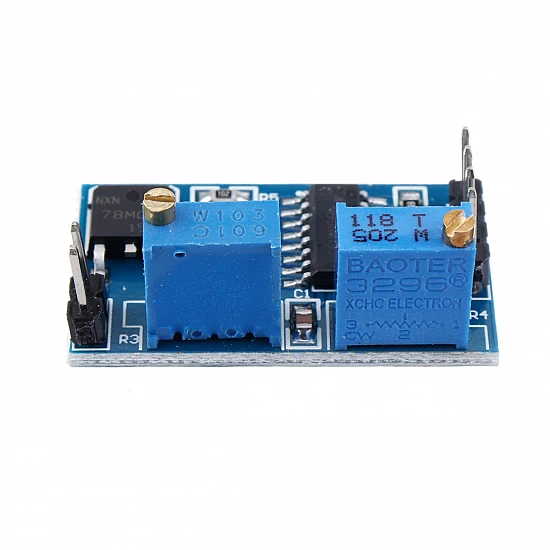

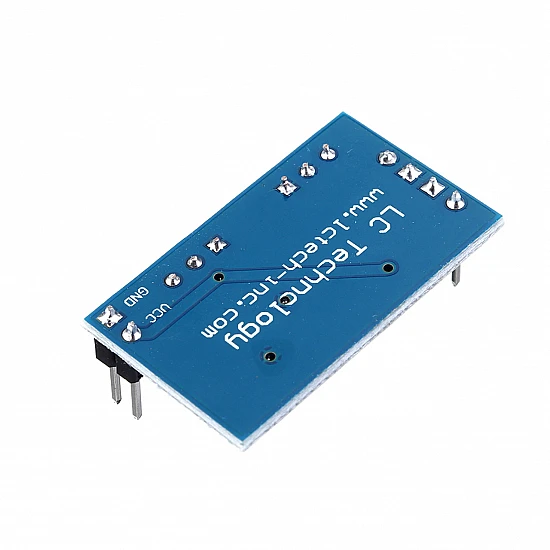

SG3525 PWM Controller Module | Modules | Control

This is SG3525 PWM Controller Module from the category Modules | Control.

Specifications: a 78M05 regulator chip that provides a dependable reference voltage is built into the device, together with two precision adjustable resistors (R3 and R4) that govern the duty cycle and frequency. Work voltage: 8 to 12 volts

Adjustable frequency range: 100 Hz to 100 kHz

Five volts

Size of the board: 30.8 mm x 18 (mm)

contains 1x SG3525 PWM Controller Module in the package.
