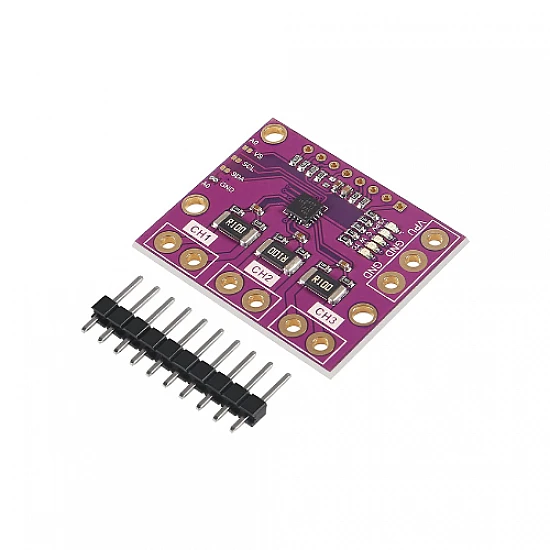

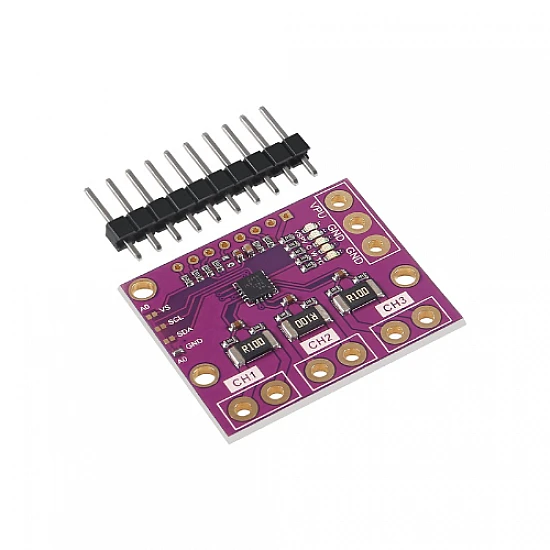

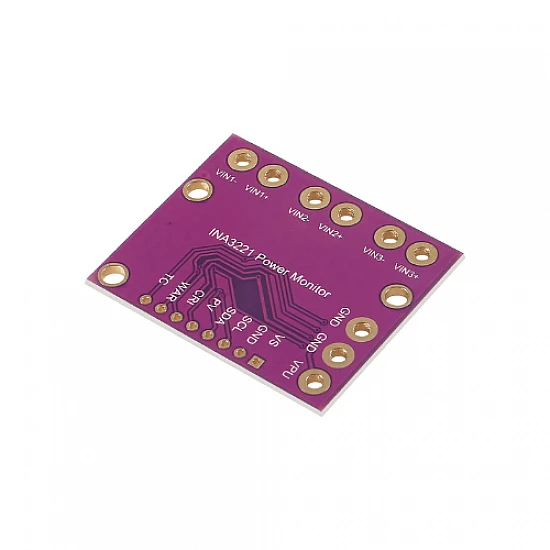

MCU-3221 INA3221 Three Way I2C Output Current Power Monitor | Sensors | Common

This is MCU-3221 INA3221 Three Way I2C Output Current Power Monitor from the category Sensors | Common.

Product Three-way low-side/high-side output current I2C/Power Monitor for MCU-3221 A three-channel, high-side current and bus voltage monitor with I2C and SMBUS compatibility is the INA3221. The INA3221 can calculate average values and give adjustable conversion times for these signals in addition to monitoring the shunt voltage drop and bus power supply voltage. Key alarms and warning alarms are provided by the INA3221 to identify various out-of-range conditions that are programmable on each channel. INA3221 sensing bus (scoped voltage shift from 0 to 26 volts). This devices components include a single 2.7V to 5.5V power supply, an ICC, and an IDD that consumes 350A. (Typical value). The recommended operating temperature range for the INA3221 is -40°C to +125°C. I2C and SMBUS compatible, the interface contains four programmable buttons.
