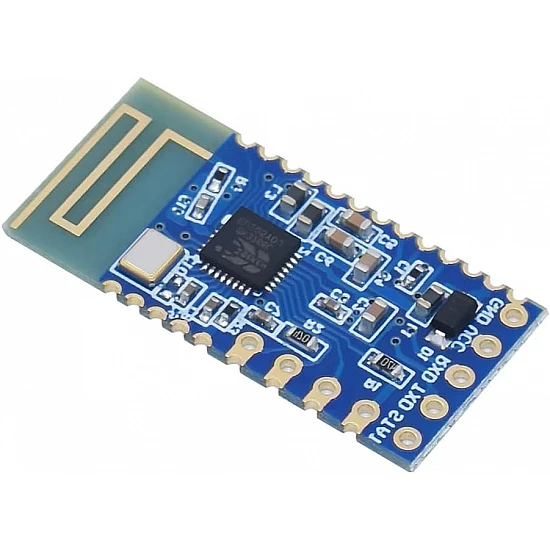

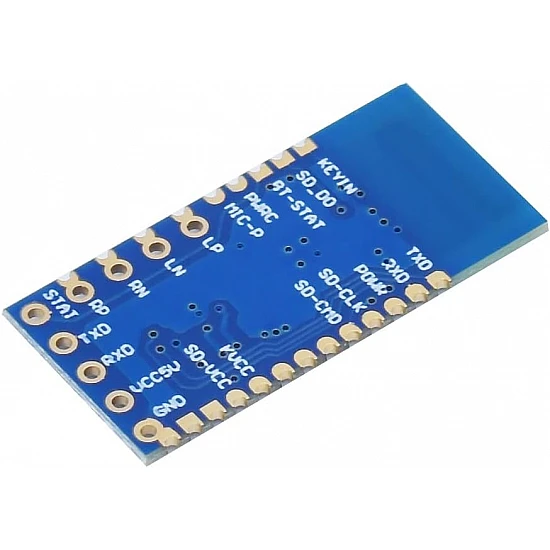

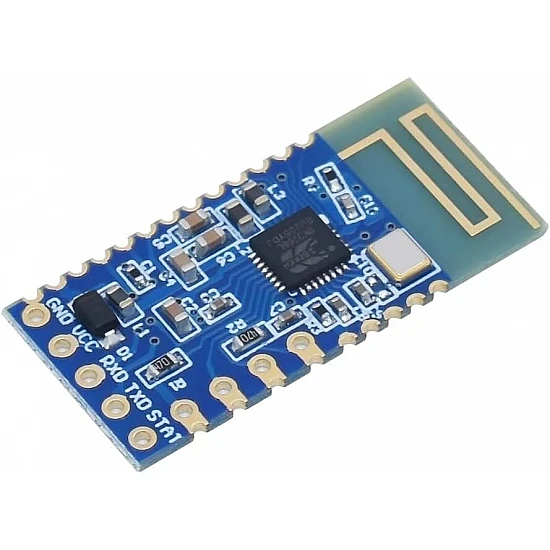

JDY-67 Dual-mode Bluetooth Audio Module | Modules | Bluetooth

This is JDY-67 Dual-mode Bluetooth Audio Module from the category Modules | Bluetooth.

Parameters:

The JDY-67 model

Version of Bluetooth: Bluetooth V4.2

HFPV1.7, A2DPV1.2, AVRCPV1.5, AVCTPV1.2, and AVDTPV1.2 support the Bluetooth protocol. Low Effort

DC3.3-4.2V is the operating voltage.

Current in broadcast state when not connected: 3.5mA

Working condition current following connection: 20 mA

3 uA deep sleep current

Operating range: -40°C to 80°C

Transmission range: 15 metres

-87dbm Sensitivity

260°C for the patch

Included in the package: 1 JDY-67 Bluetooth Module
