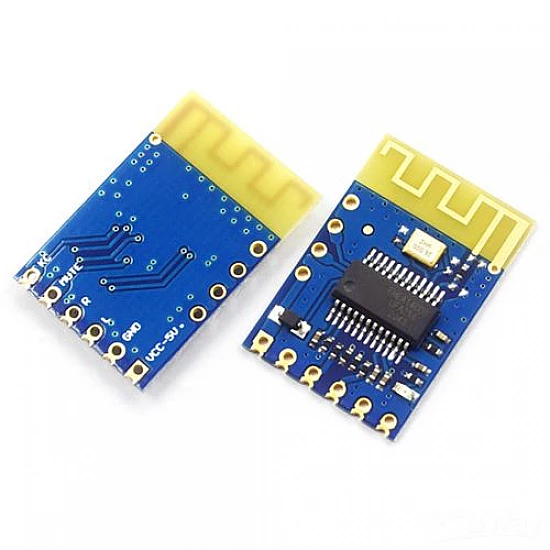

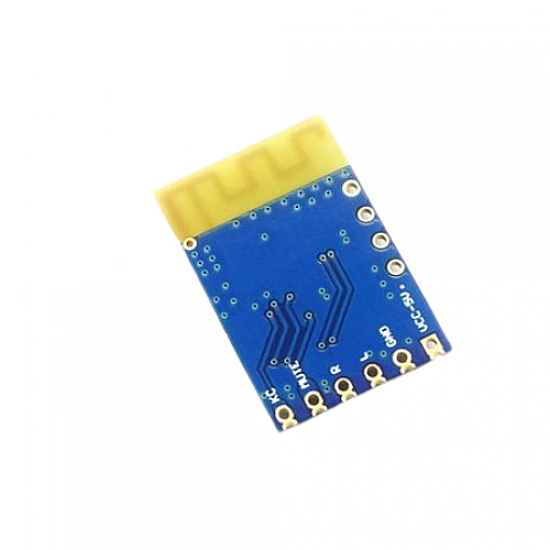

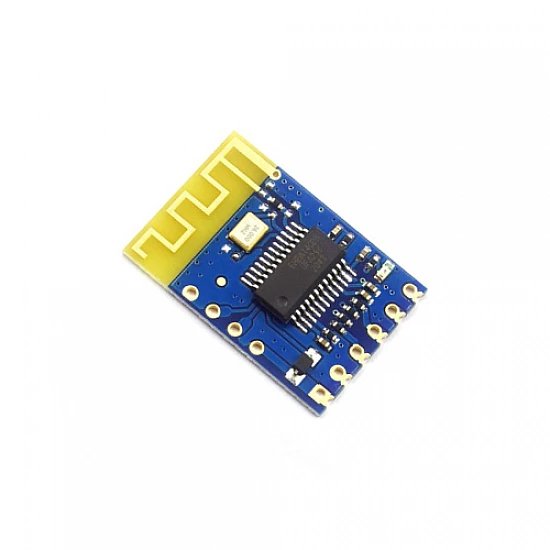

JDY-62A Dual Channel Bluetooth Audio Stereo Module | Modules | Bluetooth

This is JDY-62A Dual Channel Bluetooth Audio Stereo Module from the category Modules | Bluetooth.

Product specifications:

The power source must be given if the LC filter circuit, especially the switching power supply, as the Bluetooth audio module needs a lot of power to function properly.

Modulus size

PCB: 25*15.5*2.4MM

Pin pitch: 2.54 MM

Common issue:

1. Perform a less-blue search

The power line must be connected to the LC filter circuit since power interference is typically the culprit.

2. Supporting a 3.7V power supply:

If you want to utilise a lithium battery instead of the JDY-62 modules default 5V power source, you can short circuit a wire or replace the diode with the 0805 OR resistance.

3, Theres not enough Bluetooth signal

Avoid routing or covering the copper under the Bluetooth antenna.
