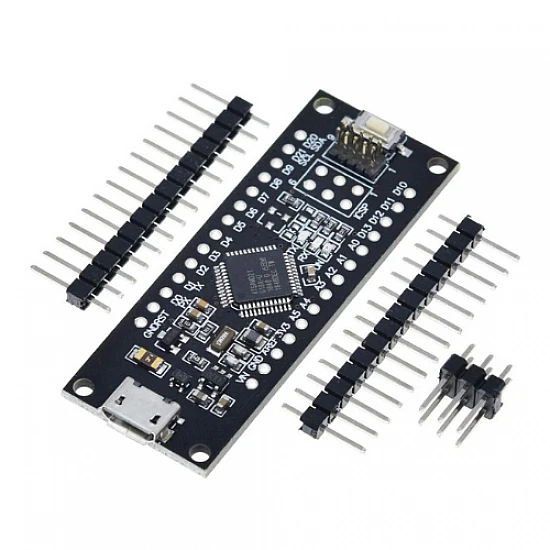

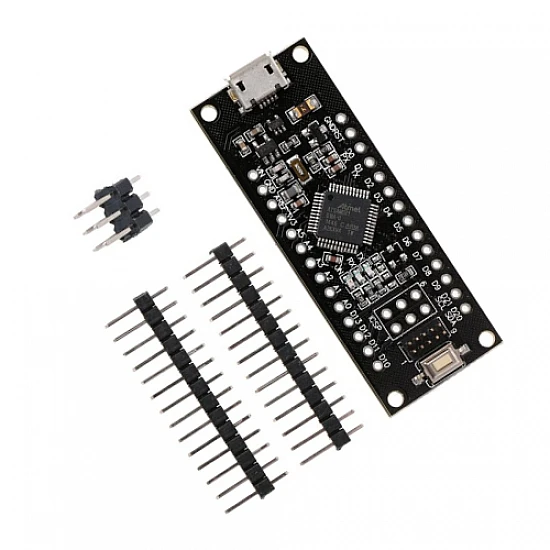

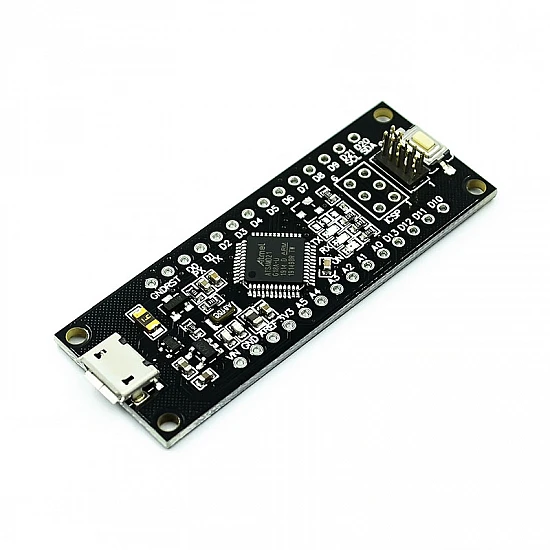

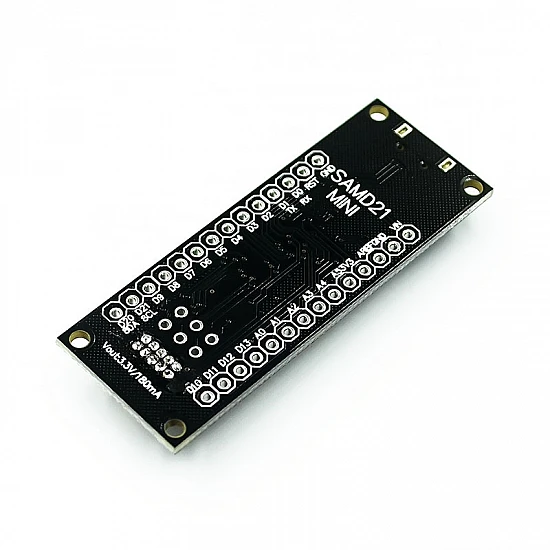

SAMD21 M0-Mini 32-Bit ARM Cortex Core Development Board
- Stock: In Stock
- Brand: Import Dukan
- SKU: ID-01-435
₹544
5 or more ₹524
15 or more ₹512
(Excluding 18% GST)
SAMD21 M0-Mini is a powerful, 32-bit extension of the Arduino UNO. It is compatible with Arduino Zero and Arduino M0. Embedded Debugger (EDBG) provides a full debug interface without the need for additional hardware, significantly increasing the ease of use for software debugging.
Features:
- Compatible with Arduino Zero and Arduino M0
- Acts as an educational tool for learning about 32-bit application development.
- EDBG supports a virtual COM port for device and bootloader programming.
Package Includes:
1 x SAMD21 M0-Mini 32-Bit ARM Cortex Core Development Board( Unsoldered ).
Technical | |
Microcontroller | ATSAMD21G18 48pins LQFP |
Analog I/O Pins | 6 |
Clock Frequency | 48 MHz |
Digital I/O Pins | 20 |
Interface Type | ISP |
Operating Temperature Range | −40°С to 85°С |
Operating Voltage | 3.3V |
Power Consumption | 3.3V 220mA |
USB Type | Micro USB |
USB-TTL converter | SAMD21 MCU |

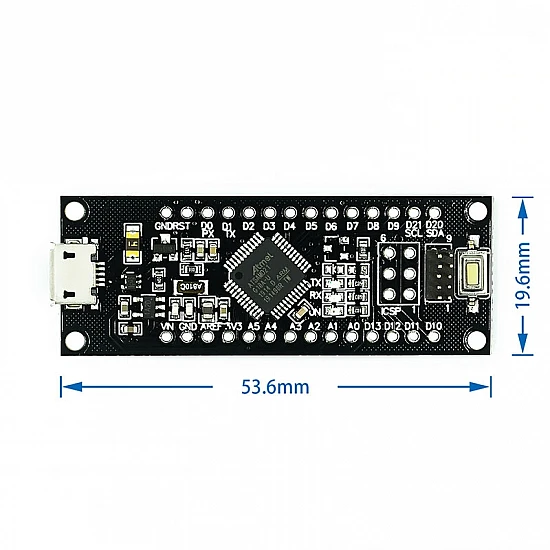

Length | 53 mm |
Height | 4 mm |
Width | 20 mm |
