S550 Hexacopter Frame Kit

Out Of Stock

S550 Hexacopter Frame Kit

Stock: Out Of Stock
Brand: Import Dukan
SKU: ID-02-706

Based on 0 reviews. - Write a review

₹4,241

3 or more ₹4,008

10 or more ₹3,878

(Excluding 18% GST)

Qty

Notify when available

Buy Now Ask Question

Add to Wish List Compare this Product

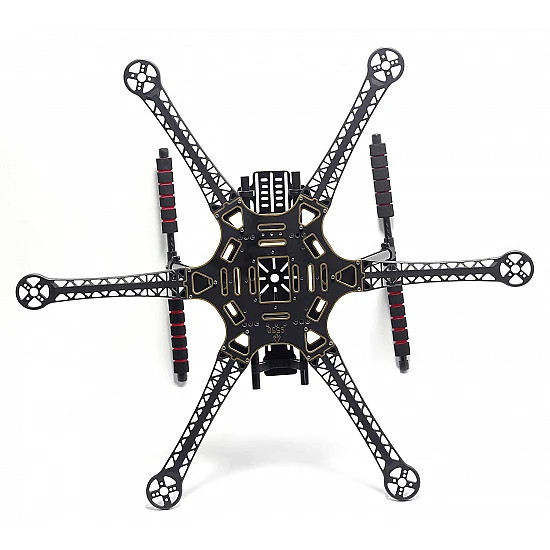

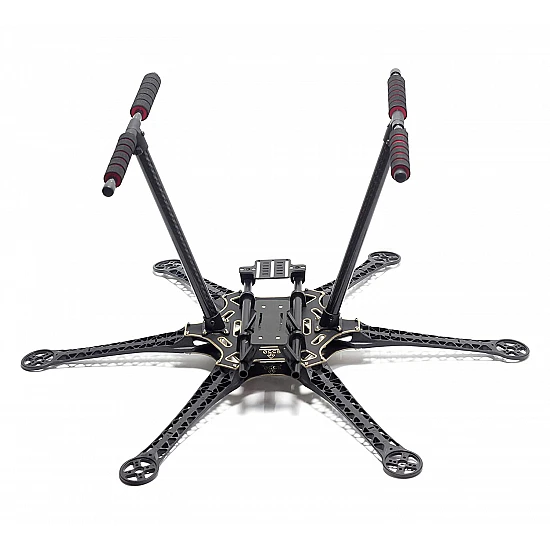

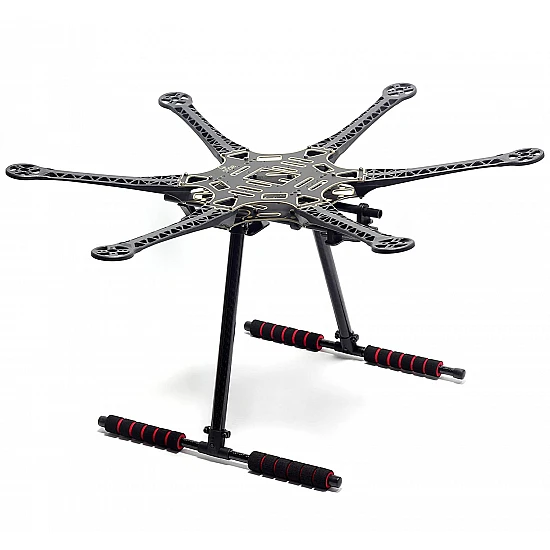

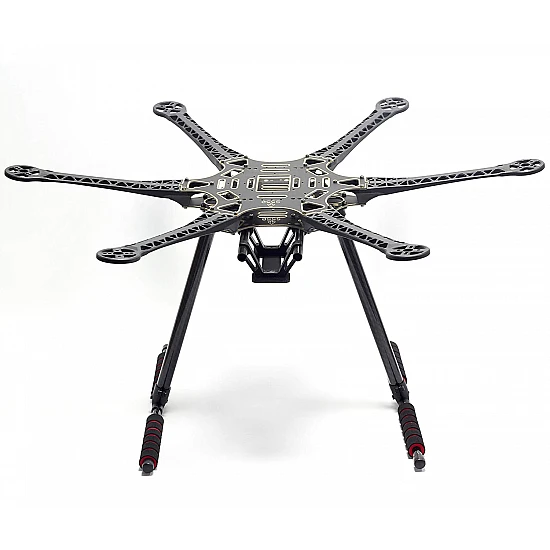

An excellent strong lightweight Hexacopter frame with carbon fiber landing gear and a bonus built-in the printed circuit board (PCB) for neat and easy wiring. So, making the Quadcopter build fast and easy. also, it avoids the use of extra PDB(Power Distribution Board) and makes the mounting clean and neat. The S550 Hexacopter Frame is a highly flexible frame during the mounting of various components like flight controller, battery, etc.

The added lift capacity of a hex configuration makes this frame ideal for carrying larger payloads such as camera systems and other electronic components. This makes for an exceptional camera rig or simply a very agile and powerful multi-rotor frame for aerobatics!

The Assembly of this frame is super simple with pre-threaded sleeves for all the frame bolts so no lock-nuts are required. The motor mounts are ready to take a selection of motors with mounting hole centers of 16, 19, and 25mm once again making this a very universal frame at a very affordable price.

It comes with pre-threaded brass sleeves for all of the frame bolts, so attaching the arms to the mainframe is done within few minutes. Also, it requires one size of bolt for the overall build and thus a unique one-size hex wrench which makes hardware mounting very convenient.

Features:

Easy to assemble and disassemble.
PCB for easy and neat wiring
Made by advanced engineering material, super strong & smooth
The main glass fiber frame has good strength.
The arm equips support ridges for better and faster forward flight.
Features pre-threaded brass sleeves.
Large mounting tabs for camera mounting.

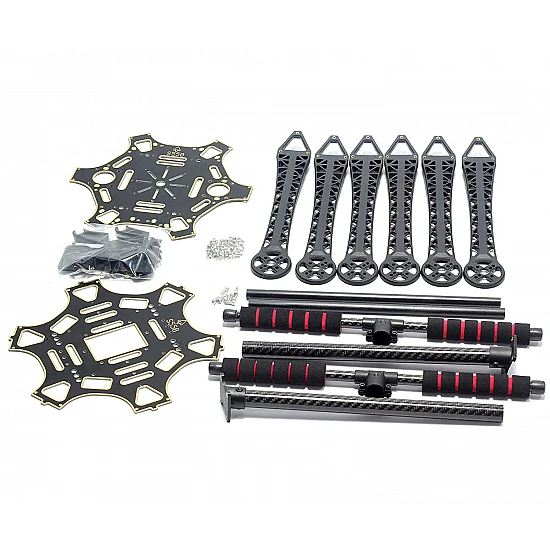

Package Include:

1 x S550 Hexacopter Frame(Top and Bottom) with PCB soldered centerboard

6 x S550 arms

1X Landing gear setup

1X Accessories set

Technical
Model	S500
Arm Size	235×42 mm
Board	PCB version
Color	Black
Landing Gear	Carbon Fiber
Landing Gear Height	around 250 mm
Landing Gear Weight	100 gm (both)
Motor Mount Bolt Holes	16, 19, and 25 mm
Total Weight	760 gm
Wheelbase	550mm
