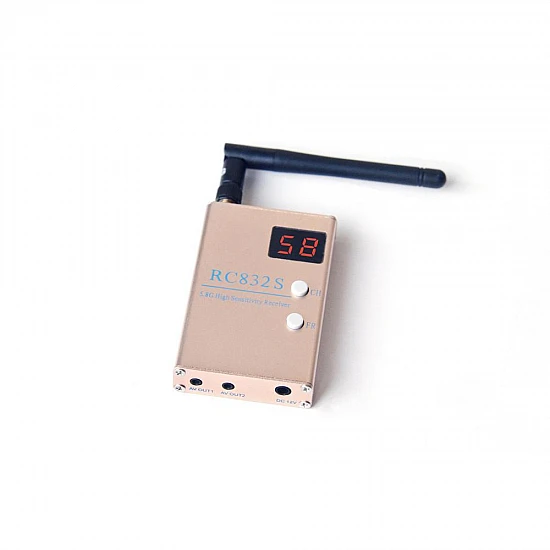

RC832S 5.8G 32CH Wireless AV High Sensitivity FPV Receiver

RC832S 5.8G 32CH Wireless AV High Sensitivity Receiver
RC832S 5.8G 32CH Wireless AV High Sensitivity Receiver
RC832S 5.8G 32CH Wireless AV High Sensitivity Receiver
RC832S 5.8G 32CH Wireless AV High Sensitivity Receiver
RC832S 5.8G 32CH Wireless AV High Sensitivity Receiver
RC832S 5.8G 32CH Wireless AV High Sensitivity Receiver
RC832S 5.8G 32CH Wireless AV High Sensitivity Receiver
RC832S 5.8G 32CH Wireless AV High Sensitivity Receiver
RC832S 5.8G 32CH Wireless AV High Sensitivity Receiver
RC832S 5.8G 32CH Wireless AV High Sensitivity Receiver
RC832S 5.8G 32CH Wireless AV High Sensitivity FPV Receiver
₹1,543
5 or more ₹1,478
15 or more ₹1,442

(Excluding 18% GST)

The RC832 Receiver uses the same two-button interface as the TS832 transmitter, which makes the channel change the breeze. There are two independent AV outputs for both audio and video. RC832S 5.8G 32CH Wireless AV High Sensitivity Receiver is small in size for easy integration into your ground station.



Powering the receiver at the field is as easy as plugging in a 3 cell lipo into the included prewired cable with mini JST.

Features:

  • Smaller in size and lighter weight.
  • 32 channels, 4 frequency band wireless receiving.

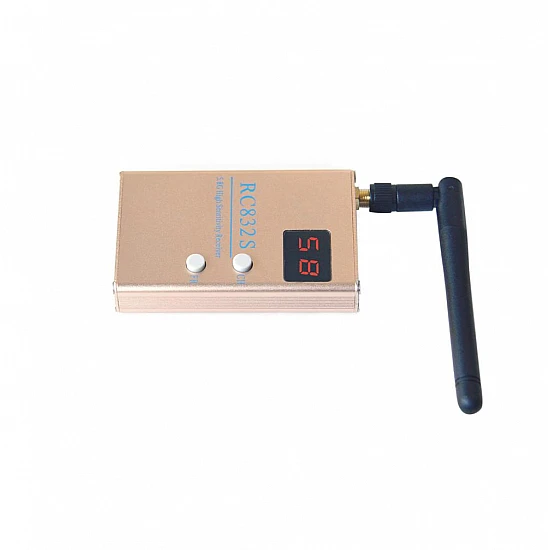

  • There are two buttons for channel and band exchange individually.
  • Two number display, timely locate the current receiving frequency and band.
  • When powering it on, storage memory shows the channel and frequency of the last time.

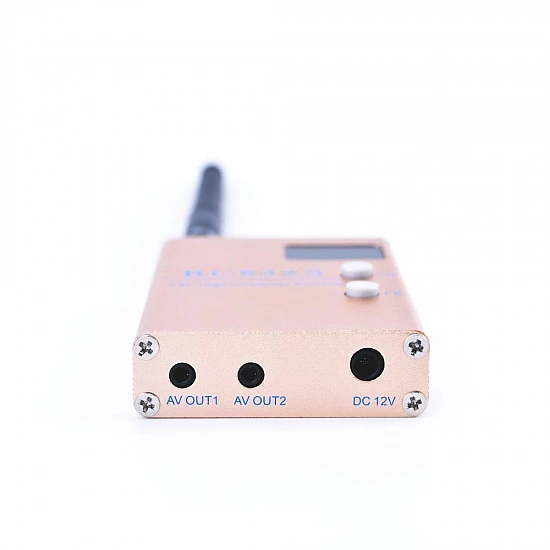

  • Two-way video and audio signal output ( video: PAL, NTSC, CECAM; Audio: 6.5MHz).

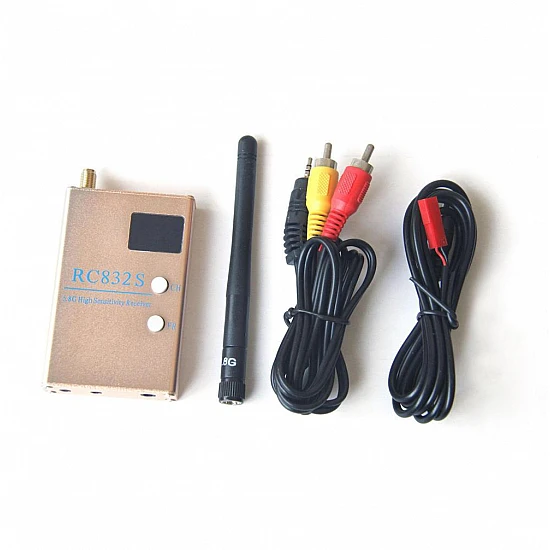

Package Includes:

1 x RC832S 5.8G 32CH Wireless AV High Sensitivity Receiver

1 x Power Cable for RC832S.

1 x Video CAble.

1 x A Removable Antenna.

Technical

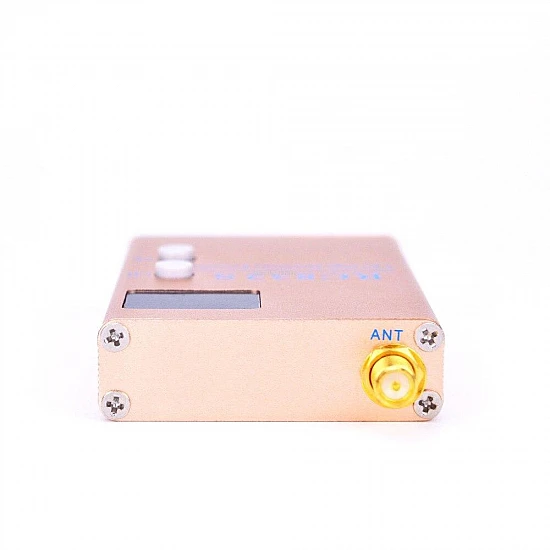

Antenna Type

Male RP-SMA

No. of Channels

32

Operating Temperature Range

-10°C to 85°C

Receiver frequency

ISM 5.8G 32CH

Receiving Sensitivity

-95dBm

Supply Current

130mA

Supply Voltage

DC 7-26V

Length

78 mm

Height

15 mm

Width

50 mm
