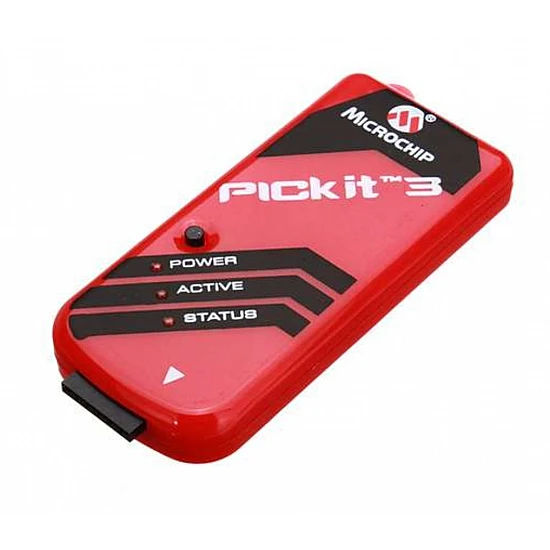

PICKIT3 USB PIC Programmer/Debugger

PICKIT 3 In-Circuit Debugger/Programmer compatible to Microchip uses in-circuit debugging logic incorporated into each chip with Flash memory to provide a low-cost hardware debugger and programmer.

The PICKIT3 allows debugging and programming of PIC and dsPIC Flash microcontrollers using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE).

Specifications:

• Type: Debugger/Programmer
• Tool/Board Application: Debugging/Programming
• MCU Supported Families: Flash-based PIC MCUs
• Core Architecture: PIC, dsPIC
• IC Product Type: In-Circuit Debugger

Features:

• USB (Full speed 12 Mbits/s interface to host PC)
• Real-time execution
• MPLAB IDE compatible
• Built-in over-voltage/short circuit monitor
• Firmware upgradeable from PC/web download
• Supports low voltage to 2.0 volts (2.0v to 6.0v range)
• Diagnostic LEDs (power, busy, error)
• Read/write program and data memory of the microcontroller
• Erase of program memory space with verification
• Freeze-peripherals at breakpoint
• Program up to 512K byte flash with the Programmer-to-Go

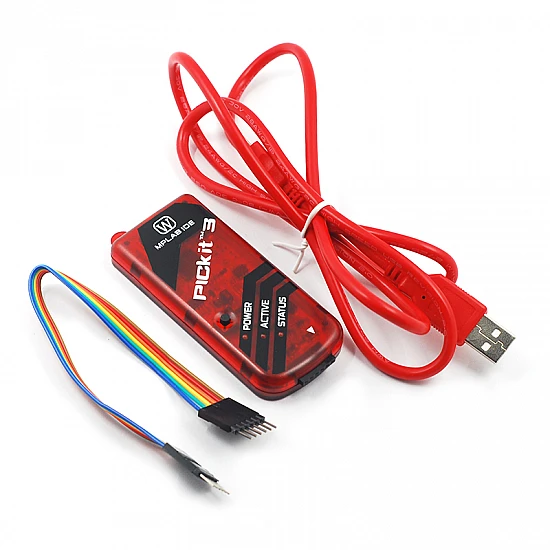

Package Includes :

1 x PICKIT3

1 x USB cable

1 x 6pin cable
