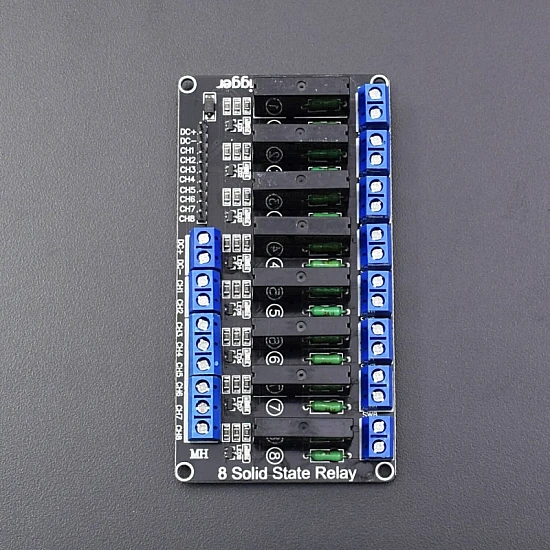

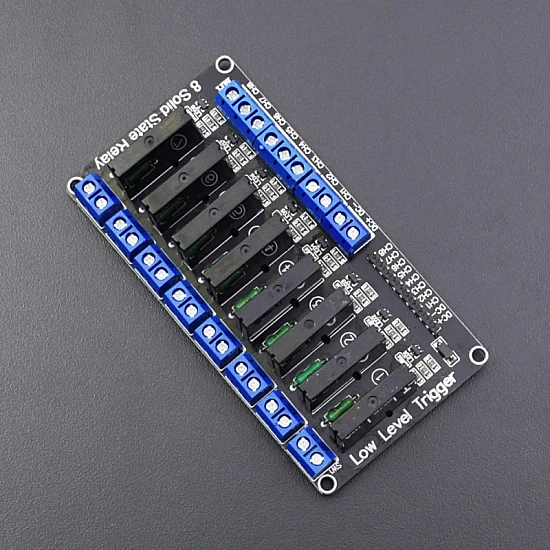

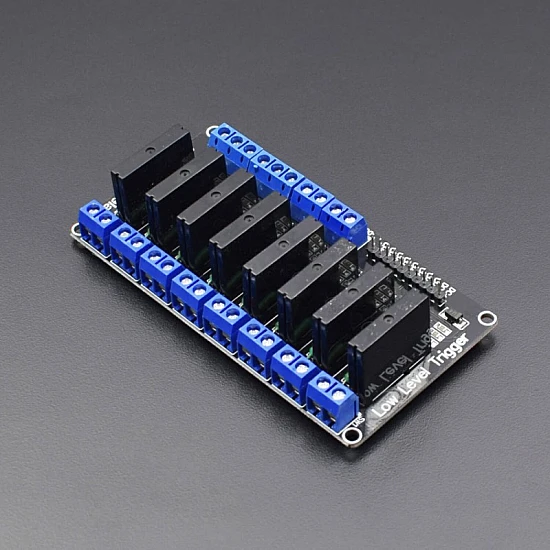

5V 2A 8 Channel SSR Solid State Relay Module with Fuse

Ideal for controlling the switching of up to 8 devices using this high-level triggered solid state relay board. It can switch AC electrical lines of up to 240V and 2A.

5V 2A 8-Channel SSR Solid State Relay Module which can control up to 2A at 240VAC. This is an 8 Channel SSR relay module, each relay channel has 3 separate terminals, NO (Normal Open), COM (Common), NC (Normal Closed).

When the input logic voltage is applied to the coil, the NC will disconnect from the COM breaking the conductivity between the two. At the same time, the NO will connect with the COM allowing conductivity between them. Depending on your wiring this will turn on or off the connected load.

5V 2A 8-Channel SSR Solid State Relay Module can be directly controlled by Arduino and other microcontrollers. It is 8 channels relay interface board able to control various appliances and equipment with a large current.

Features:

• Control 8 loads of up to 2 amps each at 120V or 240V AC.
• Led indicator for each relay.
• Fast switching speed
• Longer lifespan
• Inbuilt resistive fuse to protect from the excessive current drain

Input parts :

• DC+: connect power positive
• DC-: connect power negative
• CH1: relay module signal trigger point (Effective low-level trigger)
• CH2: relay module signal trigger point (Effective low-level trigger)
• CH3: relay module signal trigger point (Effective low-level trigger)
• CH4: relay module signal trigger point (Effective low-level trigger)
• CH5: 5-way relay module signal triggering end (low-level trigger valid)
• CH6: 6-way relay module signal triggering end (low-level trigger valid)
• CH7: 7-way relay module signal triggering end (low-level trigger valid)
• CH8: 8-channel relay module signal triggering end (low-level trigger valid)

Package Includes:

1 x 5V 2A 8 Channel SSR Solid State Relay Module with Fuse
