SIM28ML GPS Receiver Module with GPS antenna

Out Of Stock

SIM28ML GPS Receiver Module with GPS antenna

Stock: Out Of Stock
Brand: Import Dukan
SKU: ID-01-721

Based on 0 reviews. - Write a review

₹1,006

5 or more ₹963

15 or more ₹940

(Excluding 18% GST)

Qty

Notify when available

Buy Now Ask Question

Add to Wish List Compare this Product

This GPS Receiver Modem is based on SIMCOM's Sim28M/Sim28ML GPS Module. SIM28ML is a stand-alone or A-GPS receiver with build-in LNA. it is designed with a high sensitivity navigation engine, which allows you to achieve the industry’s highest levels of sensitivity, accuracy, and Time-to-First-Fix (TTFF) with the lowest power consumption. Sim 28ML can track as low as -165 dBi signal even without network assistance.

SIM 28ML has excellent low power consumption characteristics. Sim 28ML supports various location and navigation applications including autonomous GPS, QZSS, SBAS ranging(WASS, EGNOS, GAGAN, MSAS), DGPS, and A-GPS.

Features:

Compact size
easy to use
Low Power consumption
High accuracy

Package Includes:

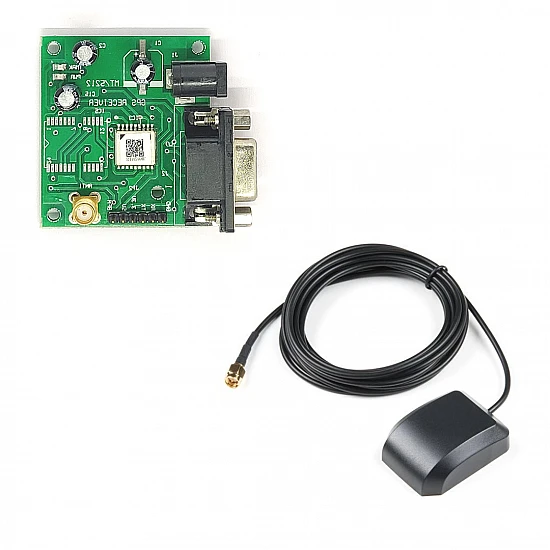

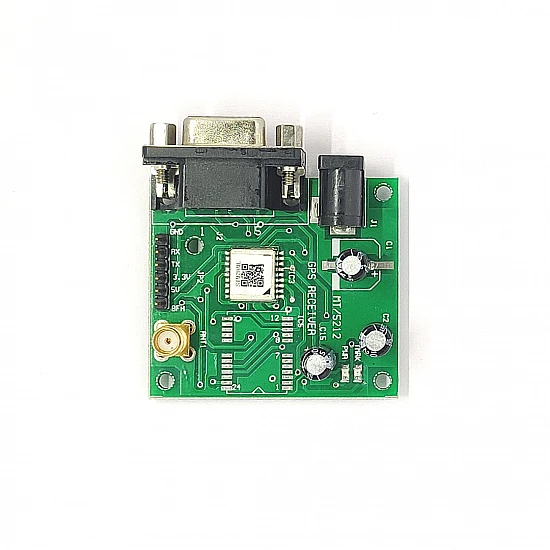

1 x SIM28ML GPS Receiver Module

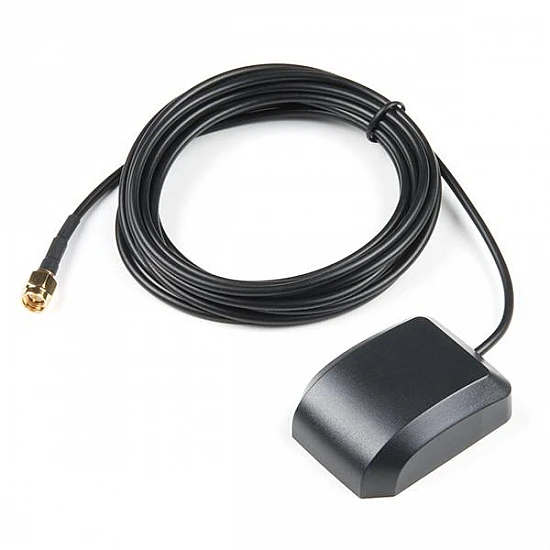

1 x GPS antenna with SMA male connector

Technical
Accuracy	Automatic Position 2.5m
Antenna Type	Active and Passive
Operating Temperature Range	-40ºC to 85ºC
PCB Size ( L x W )	5 x 5 cm
Power Consumption	Acquisition 17mA, Tracking 16mA, Back up 8uA
Receiver Type	22 tracking/66 acquisition channel GPS receiver GPS L1, C/A Code
Sensitivity	-165 dBm, Reacquisition -160 dBm, Cold Starts - 148 dBm
